Description
When compact cranes meet extreme power, you get the UNIC 700 and 1000 Series. The URW706 and URW1006 are the largest and most powerful mini cranes in the UAE market. Designed for the most demanding heavy-lift applications in restricted spaces, these machines offer the capacity of a medium-sized truck crane with the unique ability to travel through narrow gaps and set up on floors with limited load-bearing capacity.
Key Technical Comparison:

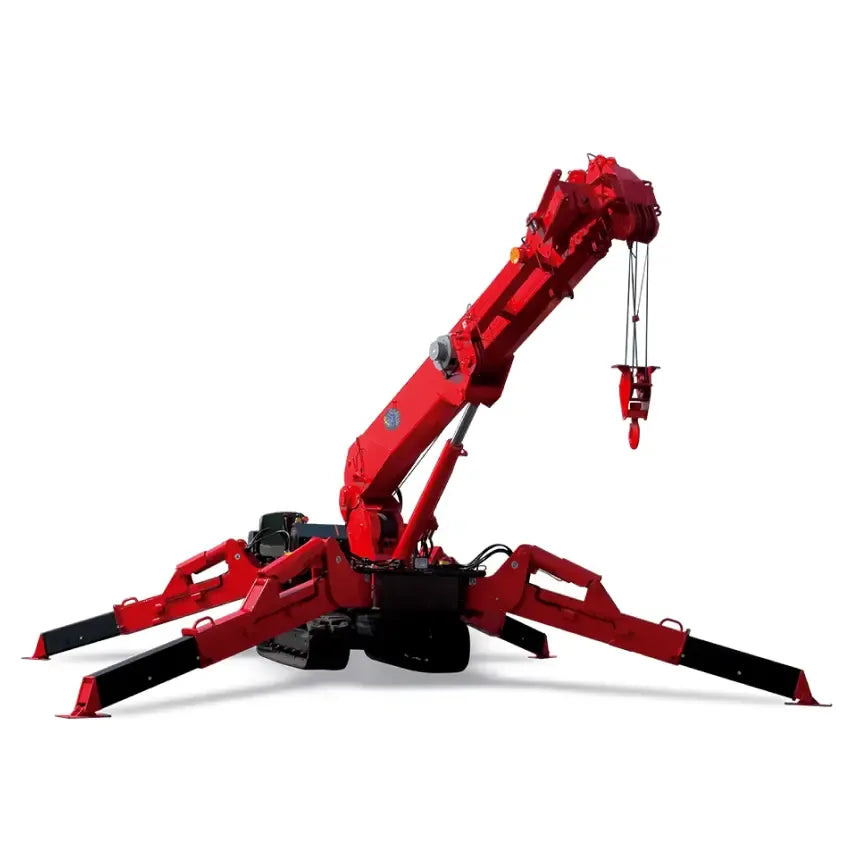

| Specification | URW706 Spider Crane | URW1006 Spider Crane |
| Max Lift Capacity | 6.0 Tons x 3.0m | 10.0 Tons x 3.0m |
| Max Lifting Height | 19.5 Meters | 22.8 Meters |
| Max Working Radius | 18.6 Meters | 21.9 Meters |
| Stowed Width | 1670mm | 2000mm |
| Outrigger Footprint | Multi-position | Multi-position (Advanced) |
High-End Performance Features:
-

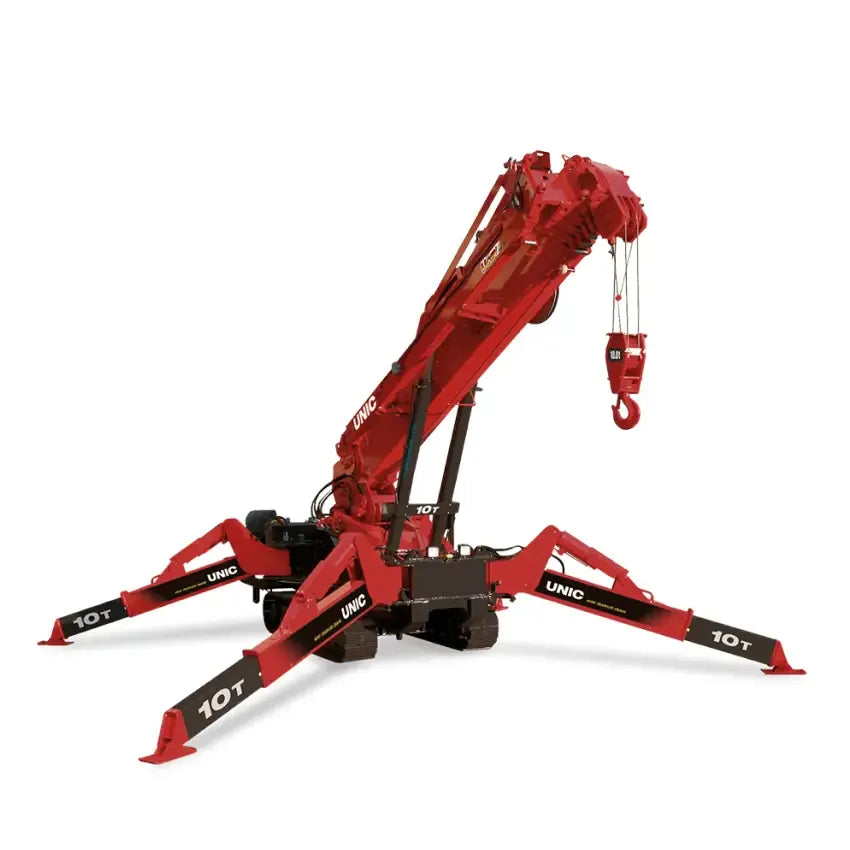

Unmatched Lifting Power: The URW1006 is a world leader, boasting a massive 10-ton capacity, making it capable of lifting heavy machinery and structural elements that previously required a mobile crane.
-
Extreme Reach: With lifting heights exceeding 22 meters, these cranes can easily handle high-level glazing and steel placement from the ground or a rooftop.
-
Pick & Carry Capability: The URW1006 features a specialized Pick & Carry function, allowing it to travel with loads up to 1,500kg—perfect for moving equipment across a job site.
-
Advanced Stability Control: Both models feature an sophisticated Load Moment Indicator (LMI) with a safe-load alarm and an automatic "cut-out" system to prevent tipping.
-
Dual Power & Precision: High-performance diesel engines for external work, with optional electric motors for indoor, low-noise, and zero-emission requirements.
Primary Applications:
-
Mega-Structure Glazing: Installing massive, heavy-duty glass panels for airports, malls, and skyscrapers.
-
Industrial Plant Installation: Positioning heavy generators, chillers, and manufacturing equipment in tight factory spaces.
-
Infrastructure & Rail: Working in tunnels, on bridges, or under low-clearance transport hubs.
-
Aviation: Maintenance and engine changes in aircraft hangars where space is restricted.
