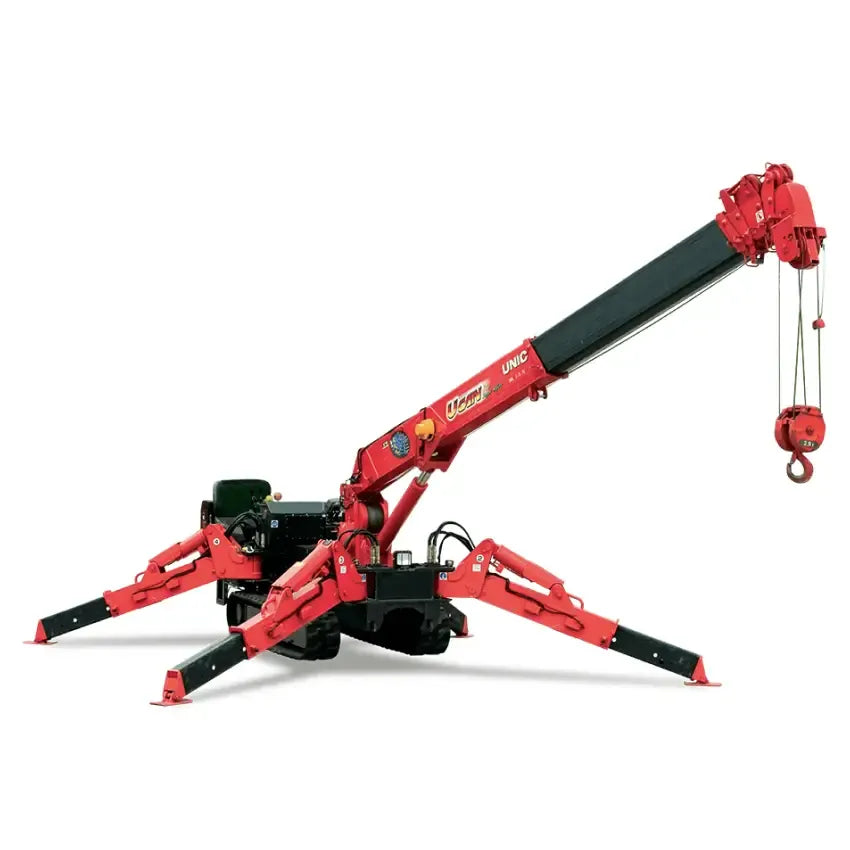

URW376 Mini Spider Crane | 2.9-Ton Capacity with Extended 14.9m Reach

Step up your lifting capabilities with the URW376 Spider Crane. While it maintains a 2.9-ton lifting capacity similar to the smaller URW295, the URW376 is engineered for height and reach. With a six-section hydraulic boom that extends nearly 15 meters, this crane is the perfect solution for mid-rise glazing, steel erection, and industrial maintenance where the load needs to be placed high or far into a structure.

Key Features & Technical Specifications:

• Lifting Capacity: Maximum 2.9 Tons (2,900kg) at a 2.5m radius.

• Extended Reach: A massive 14.45m maximum boom length (14.9m maximum lifting height).

• Narrow Access: Despite its power, it features a stowed width of only 1300mm, allowing it to pass through double doors and navigate narrow construction corridors.

• Advanced Safety System: Includes the Lift-Smart Advanced Safety System with a high-visibility LCD terminal that displays load weight, radius, and boom angle in real-time.

• Precision Controls: Fully proportional radio remote control for millimetre-perfect accuracy, allowing the operator to stand away from the load for better visibility.

• Smart Outriggers: Highly flexible outrigger system with multiple position settings to facilitate setup in confined or awkwardly shaped areas.

• Dual Power: Options for a fuel-efficient diesel engine or an emission-free electric motor for indoor and underground applications.

Ideal Applications:

• Mid-Rise Glazing: Installing glass panels on buildings up to 4-5 stories high from the ground.

• Structural Steel: Positioning steel beams for mezzanine floors and warehouse extensions.

• General Construction: Lifting materials over walls, through windows, or onto balconies.

• Aviation & Marine: Maintenance work on aircraft or vessels where space is restricted but height is required.
