URW245 Mini Spider Crane | 2.4-Ton Compact Precision Crane

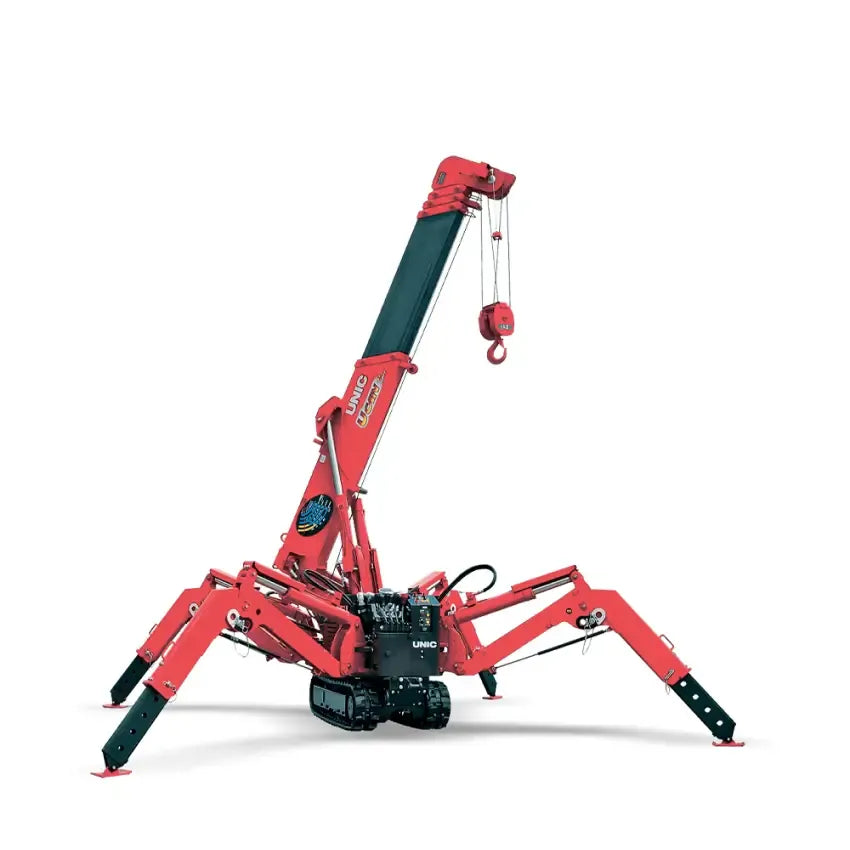

The URW245 Spider Crane is a high-performance mini crane that offers a unique combination of compact dimensions and a heavy-duty lifting capacity. With its 2.4-ton maximum lift, it provides significantly more power than the smaller URW095 while remaining slim enough to navigate through narrow passages. This machine is the industry standard for contractors who need to lift heavier loads in confined spaces, such as malls, plant rooms, and high-rise rooftops.

Key Features & Technical Specifications:

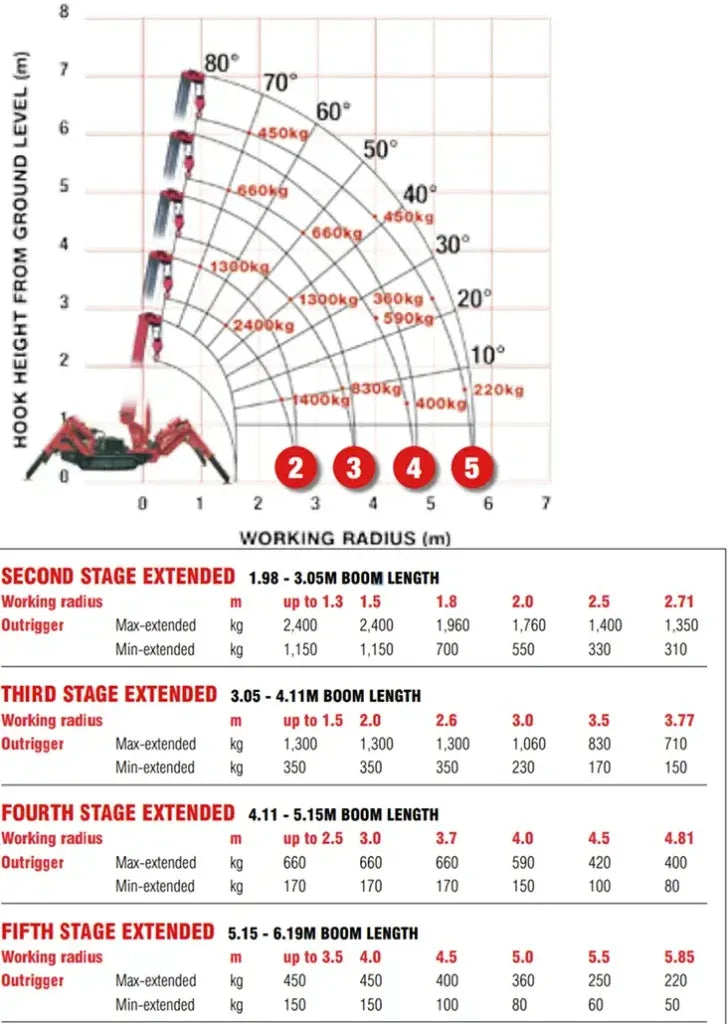

• Enhanced Lifting Capacity: Maximum 2.4 Tons (2,400kg) at a 1.5m radius.

• Vertical Reach: Boasts a maximum lifting height of 8.8 meters, allowing for high-level installation work.

• Compact Maneuverability: At only 750mm wide, it can easily access sites through standard double doors or narrow garden gates.

• Intelligent Outriggers: Features a flexible outrigger system that can be deployed in multiple positions to clear obstacles and work on uneven surfaces.

• Safety Systems: Equipped with an Intelligent Voice Warning System and an Advanced Load Moment Indicator (LMI) to ensure total operator safety.

• Dual Power Versatility: Available with both a diesel engine for outdoor performance and an electric motor for noise-sensitive, indoor, or zero-emission environments.

• Radio Remote Control: Comes standard with a high-precision remote control, allowing the operator to stand in the best position for a clear view of the load.

Ideal Applications:

• Commercial Glazing: Lifting large, heavy glass panels for curtain walls and shopfronts.

• Plant Room Maintenance: Installing or replacing pumps, motors, and boilers in cramped indoor spaces.

• Restoration & Heritage: Working on sensitive sites where heavy machinery ground pressure must be kept to a minimum.

• Rooftop Construction: Its light weight and high capacity make it perfect for crane-assisted lifting to building tops.
